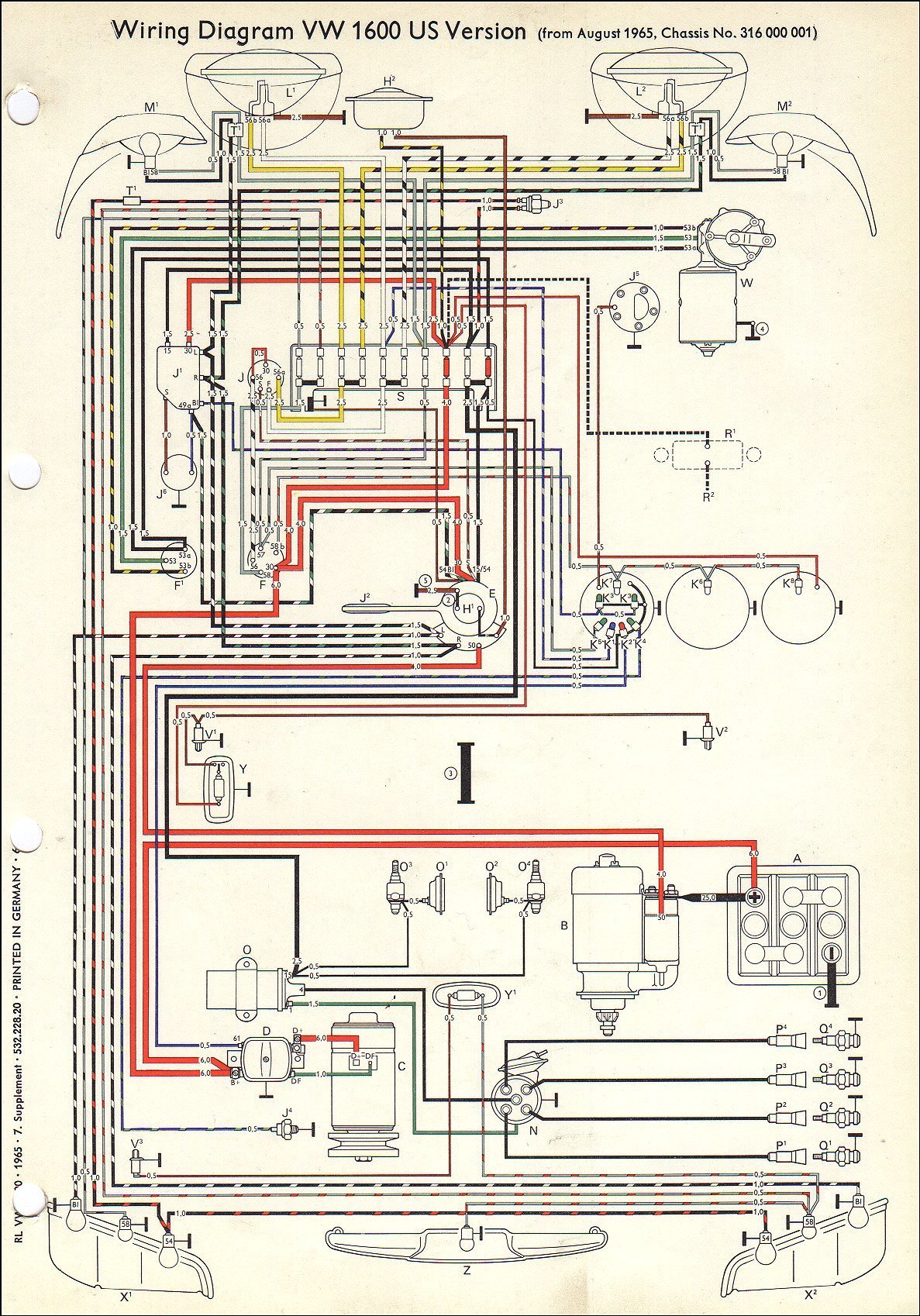

VW1600 US version 1966 (from Aug '65, Chassis no. 316 000 001)
Wiring key below
Wiring Key:
| A - Battery B - Starter C - Generator D - Regulator E - Turn signal switch and ignition starter lock F - Lighting switch F1 - Windshield wiper switch H1 - Horn lever H2 - Horn J - Hand dimmer relay J1 - Flasher/emergency light relay J2 - Headlamp flasher button J3 - Brake light switch J4 - Oil pressure switch J5 - Fuel gauge sender unit J6 - Emergency light switch K1 - High beam warning light K2 - Generator warning light K3 - Turn signal warning light K4 - Oil pressure warning light K5 - Parking light warning light K6 - Speedometer light |
K7 - Fuel gauge light K8 - Clock light L1 - Headlamp left L2 - Headlamp, right M1 - Parking light/turn signal lt M2 - Parking light/turn signal rt N - Distributor O - Ignition coil O1 - Automatic choke, left O2 - Automatic choke, right O3 - Electro-mag. pilot jet left O4 - Electro-mag. pilot jet, right P1 - Spark plug conn No. 1 cyl P2 - Spark plug conn No. 2 cyl P3 - Spark plug conn No. 3 cyl P4 - Spark plug conn No. 4 cyl Q1 - Spark plug for No. 1 cy Q2 - Spark plug for No. 2 cyl Q3 - Spark plug for No. 3 cyl Q4 - Spark plug for No. 4 cyl R1 - Radio R2 - Aerial connection |
S - Fuse box - 10 fuses T1 - Cable connector single T2 - Cable connector, double V1 - Door switch left V2 - Door switch right V3 - Luggage compart. light sw W - Windshield wiper motor X1 - Tail light left X2 - Tail light right Y - Interior light Y1 - Luggage compartment light Z - License plate light Ground connections 1 - Battery to frame 2 - Horn lever to steering coupling 3 - Transmission to frame 4 - Windshield wiper motor to body 5 - Front axle to frame Black dotted lines = Service install. 1,5 ; 0,5 etc; = Cable cross section |
