VW 1500N 1964

Key to components below

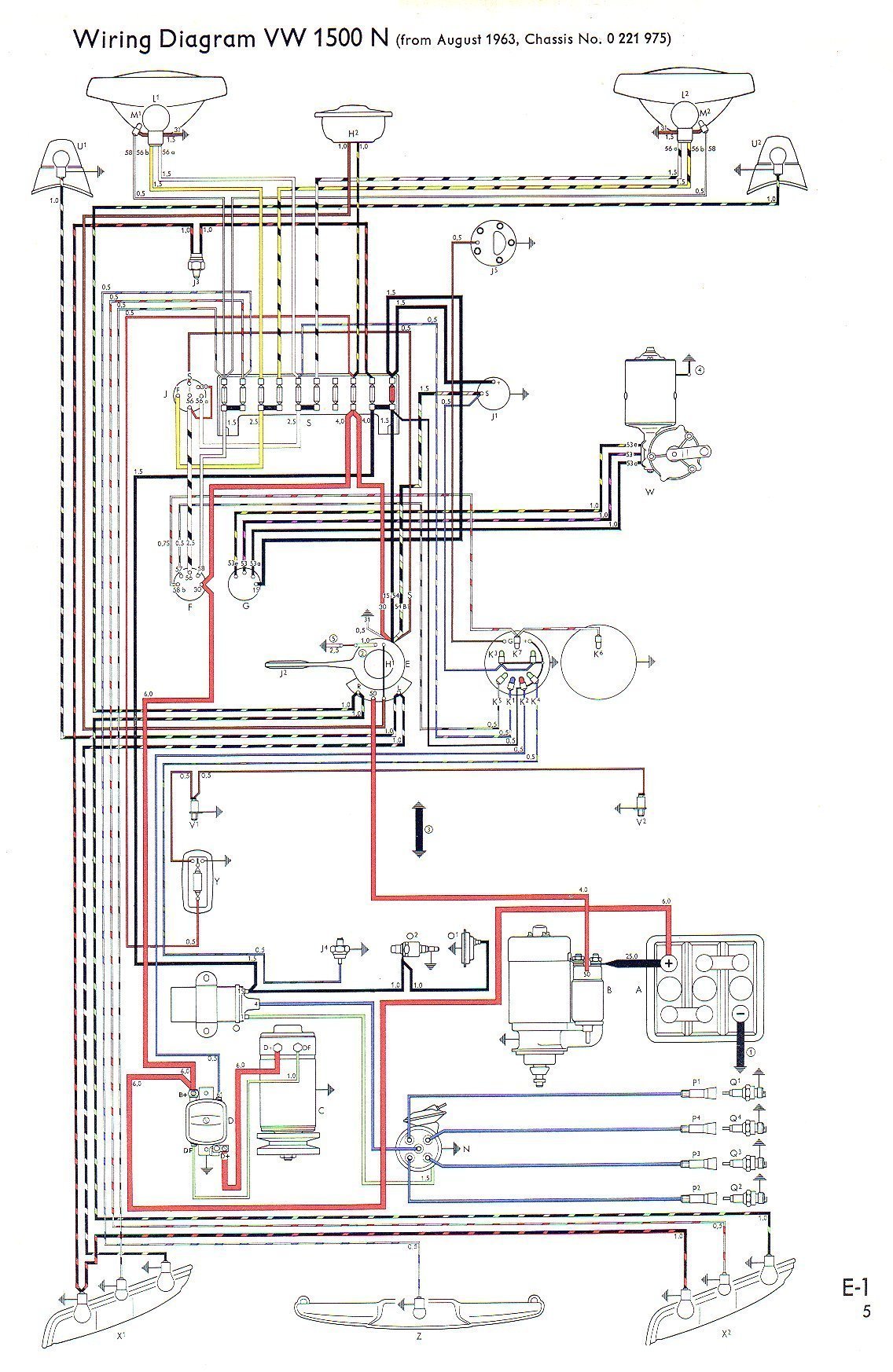

1500N Wiring  1964 model
A - Battery
B - Starting Motor
C - Generator
D - Voltage Regulator
E - Turn Indicator Switch with Steering Lock
F - Light Switch
G - Windshield Wiper Switch
H1 - Horn Lever
H2 - Horn
J - Dipper Relay
J1- Flasher Relay
J2 - Dipper Switch
J3 - Stop Light Switch
J4 - Oil Pressure Switch
J5 - Fuel Gauge Sender Unit
K1- High Beam Warning Light
K2 - Generator Control Light
K3 - Turn Indicator Control Lights
K4 - Oil Pressure Warning Light
K5 - Parking Light Control Light
K6 - Speedometer Light
K7 - Fuel Gauge Light
L1 - Bi-filament Bulb for Headlight, left
L1 - Bi-filament Bulb for Headlight. right
M1 - Front Parking Light, left
M2 - Front Parking Light, right
N - Ignition Distributor
0 - Ignition Coil
01 - Automatic Choke
02 - Electro-magnetic Pilot Jet
P1 - Spark Plug Connector for Cylinder 1
P2 - Spark Plug Connector for Cylinder 2
P3 - Spark Plug Connector for Cylinder 3
P4 - Spark Plug Connector for Cylinder 4
Q1 - Spark Plug for Cylinder 1
Q2 - Spark Plug for Cylinder 2
Q3 - Spark Plug for Cylinder 3
Q4 - Spark Plug for Cylinder 4
S - Fuse Box (ten fuses)
U1 - Front Turn Indicator Light, left
U2 - Front Turn Indicator Light, right
V1 - Door Contact Switch, left
V2 - Door Contact Switch, right
W - Windshield Wiper Motor
Y1 - Tail Light, left
X2 - Tail Light. right
Y - Interior Light
Z - License Plate Light

Ground Straps
1 - Battery
2 - Horn Ring to Column Coupling
3 - Transmission to Frame
4 - Windshield Wiper Motor to Body
5 - Front Axle to Frame

The small figures: 1.5; 0.5 etc, are
the wire cross section sizes in mm
